TP Link·Networking

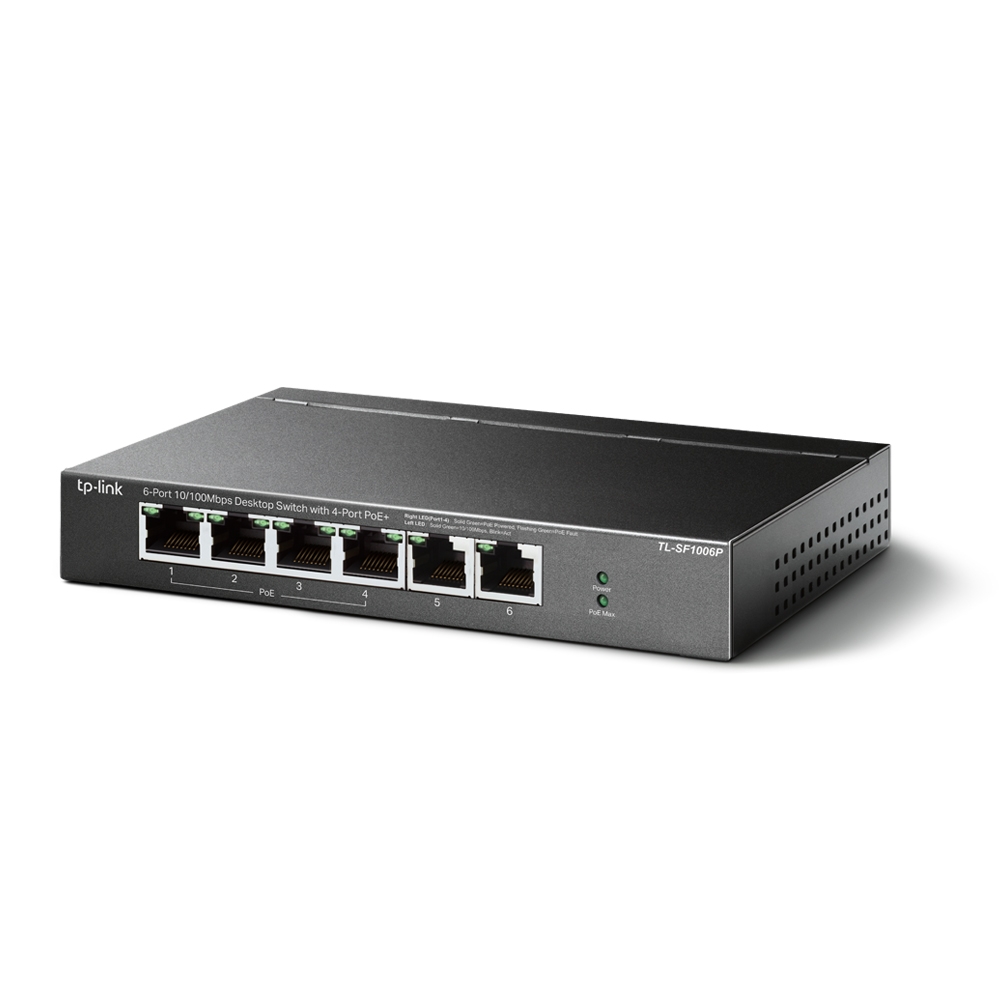

TP Link 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

Name: TP Link 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
Brand: TP Link
SKU: TL-SF1006P
Price: 38.00 USD
Availability: InStock

SKU / Item Code: TL-SF1006P

$38.00$40.00

In Stock · 21

Professional High-Power Switch with 4 PoE+ Ports Plug and Play, with PoE Transmission for Surveillance up to 250 m TL-SF1006P

Nationwide delivery

Warranty backed

Easy returns

Description

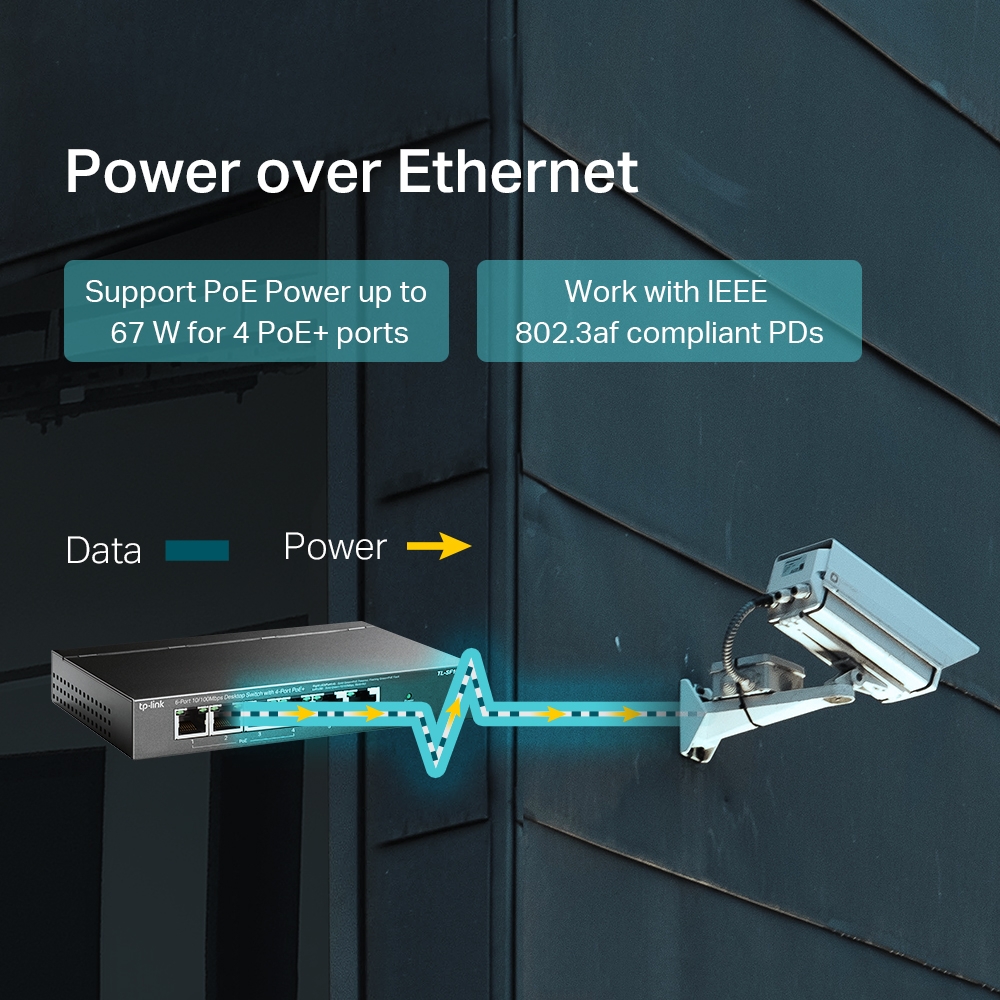

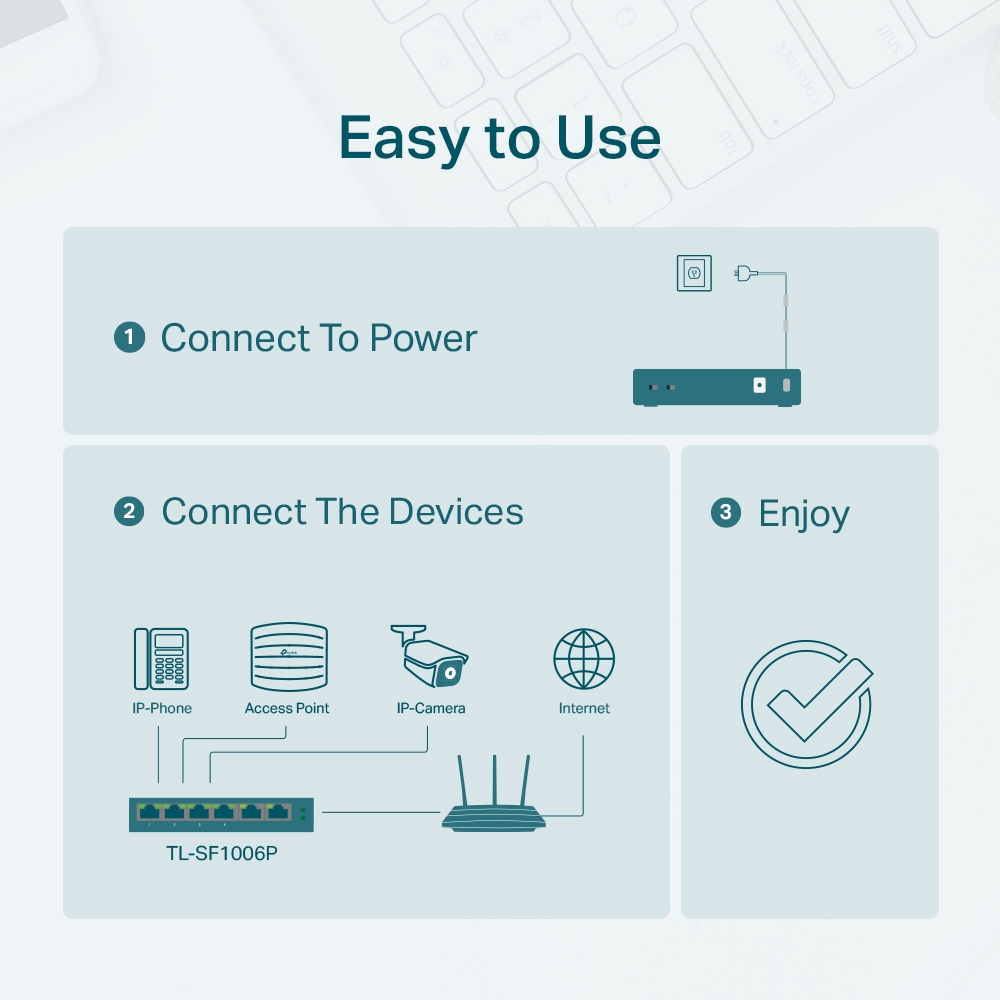

6× 10/100 Mbps RJ45 ports 4× PoE+ ports transfer data and power on individual cables Works with IEEE 802.3af/at compliant PDs Up to 250m data and power transmitting range under Extend Mode** Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application Supports PoE Power up to 30 W for each PoE port Supports PoE Power up to 67 W for all PoE ports* Plug and play with no configuration required

Technical Specifications

InterfaceInterface • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX

Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)

Fan QuantityFanless

External Power SupplyExternal Power Adapter (Output: 54 V DC / 1.3 A)

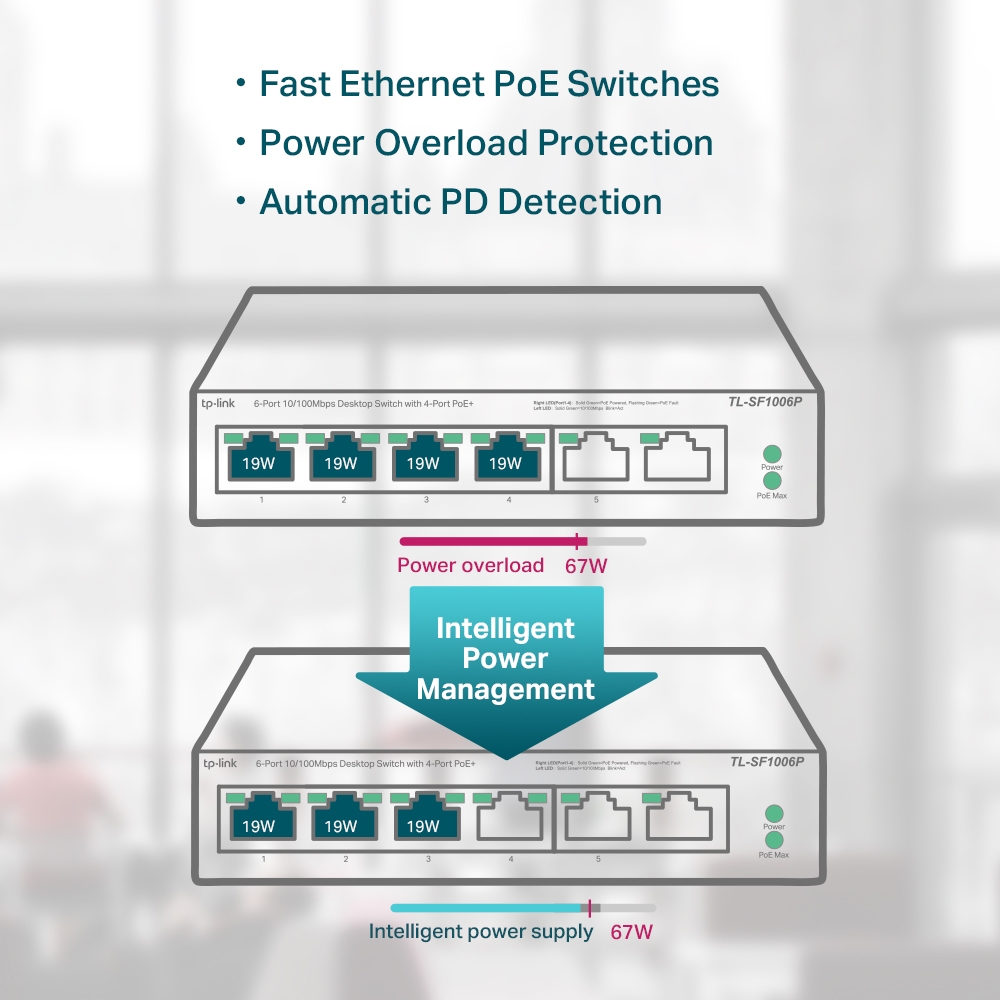

PoE Ports (RJ45)• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W

Switching Capacity1.2 Gbps

Advanced Features• Compatible with IEEE 802.3af/at compliant power devices (PDs) • Extend mode switch (Ports 1–4) • Priority mode switch (Ports 1–2) • MAC address auto-learning and auto-aging • IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode

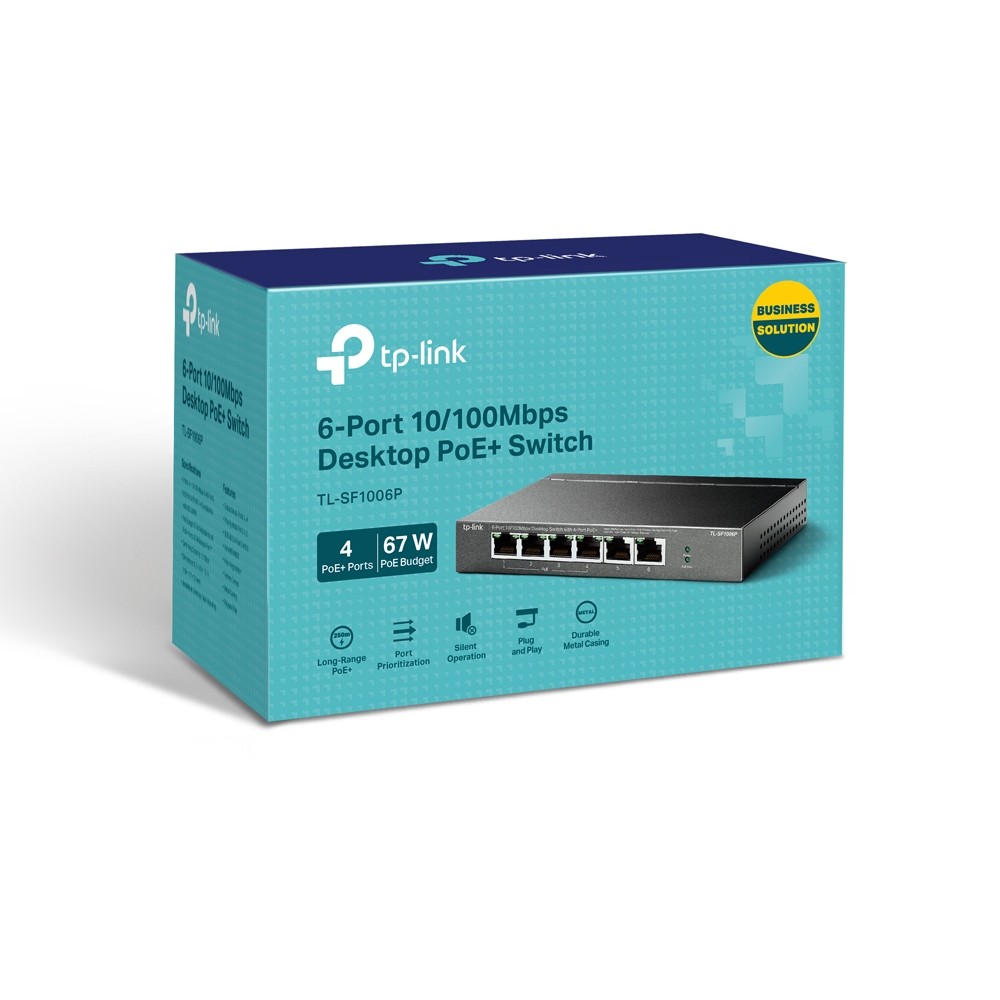

Package Content• TL-SF1006P • Power Adapter • Installation Guide

Environment• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
