TP Link·Networking

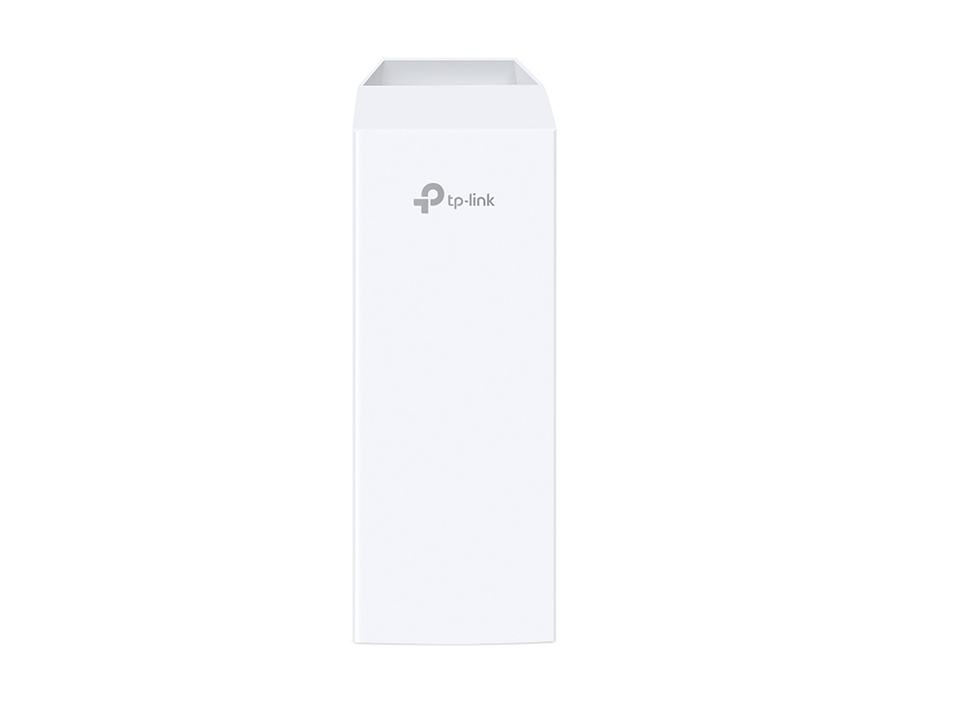

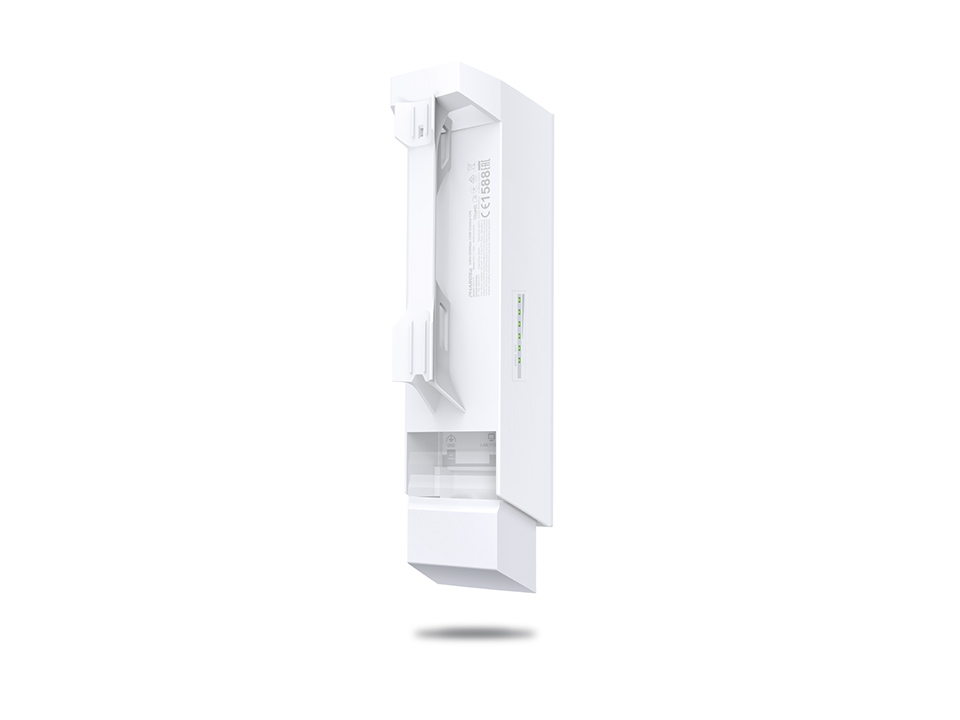

TP Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE

Name: TP Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE
Brand: TP Link
SKU: CPE510
Price: 85.00 USD
Availability: OutOfStock

SKU / Item Code: CPE510

$85.00

Out of Stock

AP / Client / AP Router / AP Client Router (WISP) operation modes

Nationwide delivery

Warranty backed

Easy returns

Description

Built-in 13dBi 2x2 dual-polarized directional MIMO antenna Adjustable transmission power from 0 to 26dBm/200mw System-level optimizations for more than 15km long range wireless transmission TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications Centralized Management System – Pharos Control AP / Client / AP Router / AP Client Router (WISP) operation modes Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Technical Specifications

ProcessorQualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc

Memory64MB DDR2 RAM, 8MB Flash

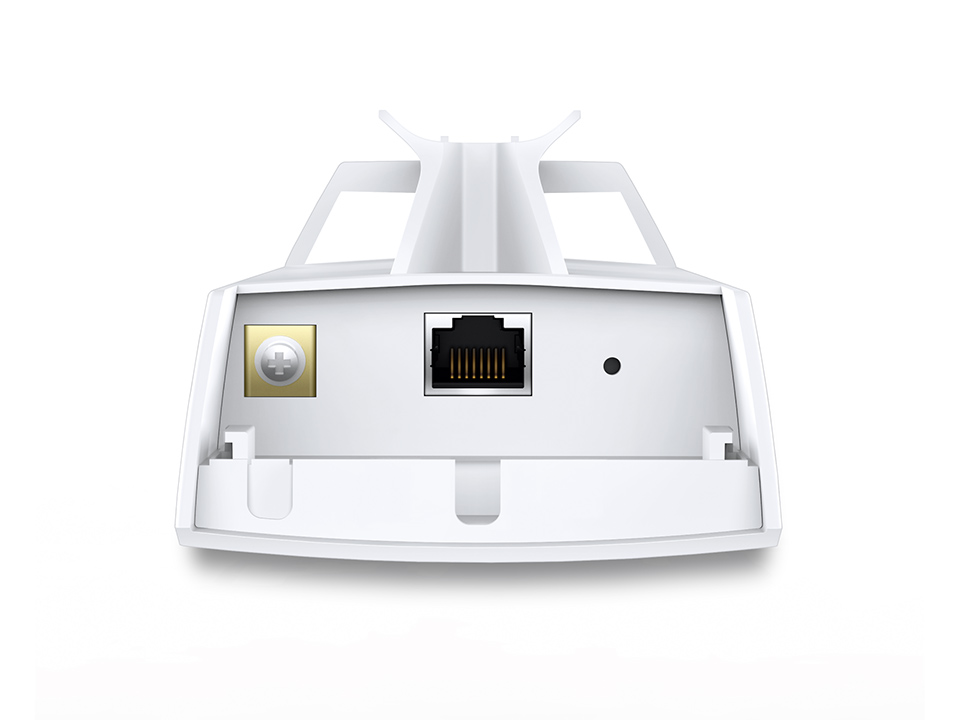

Interface1 10/100Mbps Shielded Ethernet Port (Passive PoE in) 1 Grounding Terminal 1 Reset Button

Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC

Max. Power Consumption10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Dimensions ( W x D x H )8.8 x 3.1 x 2.4 in

Wireless ConfigurationsPharos MAXtream TDMA Technology 802.11a/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management FeaturesDiscovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server

Wireless SpeedsUp to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)

Frequency5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Transmission Power23dBm/200mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
